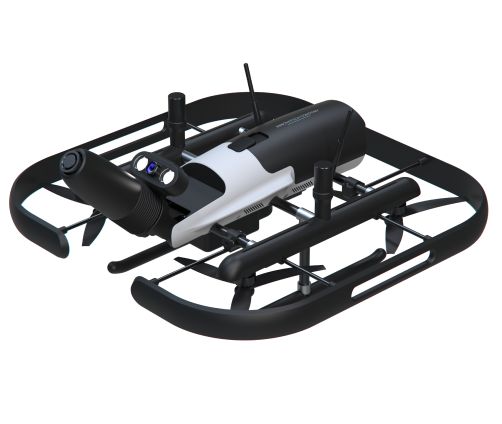

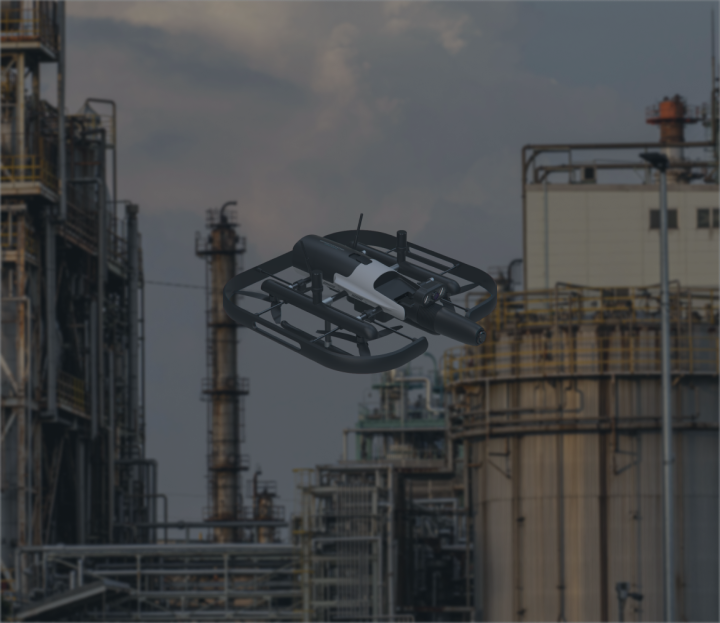

COLIBRI360 – touch base inspection system that performs Ultrasonic inspection of metal structures using EMAT technology. Unique design of the COLIBRI360 allows perform inspection of surfaces under any angles. Mast with EMAT sensor rotates on 180 degrees and allows to position sensor parallel to any surfaces. It has capability to transmit inspection data to Data center in real time for QA/QC purposes.
Thickness measurement range
Integrated EMAT gauge measures metal structure from 2 - 60 mm with accuracy 0.08 mm and resolution 0.04 mm (possible to extend up to 200 mm)
Measurement without needs of surface preparation
EMAT sensor can measure different metal surfaces - painted, coated or corroded without considering of bonding or surface quality
Sensor misallignment to the surface is not an issue
EMAT generate UT waves on the surface of inspected material and sensor allignement and good contact is not critical to obtain measurement
Sensor misallignment to the surface is not an issue
EMAT generate UT waves on the surface of inspected material and sensor allignement and good contact is not critical
to obtain measurement
Data digitalization in A-scan format
Three thickness computation algorithms available at the operator’s discretion:
01 Default - auto-expert mode significantly reduces the influence of human factor and simplifies the inspection process
02 Single Peak
03 Peak-to-Peak
EMAT Technical Parameters
Comments
Measurable thickness range
2 – 60 mm
Comments "Possible upgrade up to 200 mm"
Possible upgrade up to 200 mm
Measurement accuracy
0.08 mm
Measurement resolution
0.04 mm
Maximum operating gap
3 mm
Comments "Sensor's lift-off from surface"
Sensor's lift-off from surface
Minimum inspection diameter
25 mm
Acoustic speed range
1000 – 9999 m/s
Comments "Regulated step 1 m/s"
Regulated step 1 m/s
Operating frequency
3 – 5 MHz
Maximum sensor angle
20 deg
Comments "Angle between sensor and surface"
Angle between sensor and surface
A-Scan availability
Yes
Comments "Three thickness computation algorithms available
at the operator’s discretion:"
Three thickness computation algorithms available
at the operator’s discretion:
01 Default - auto-expert mode significantly reduces the influence of human factor and simplifies the inspection process
02 Single Peak
03 Peak-to-Peak

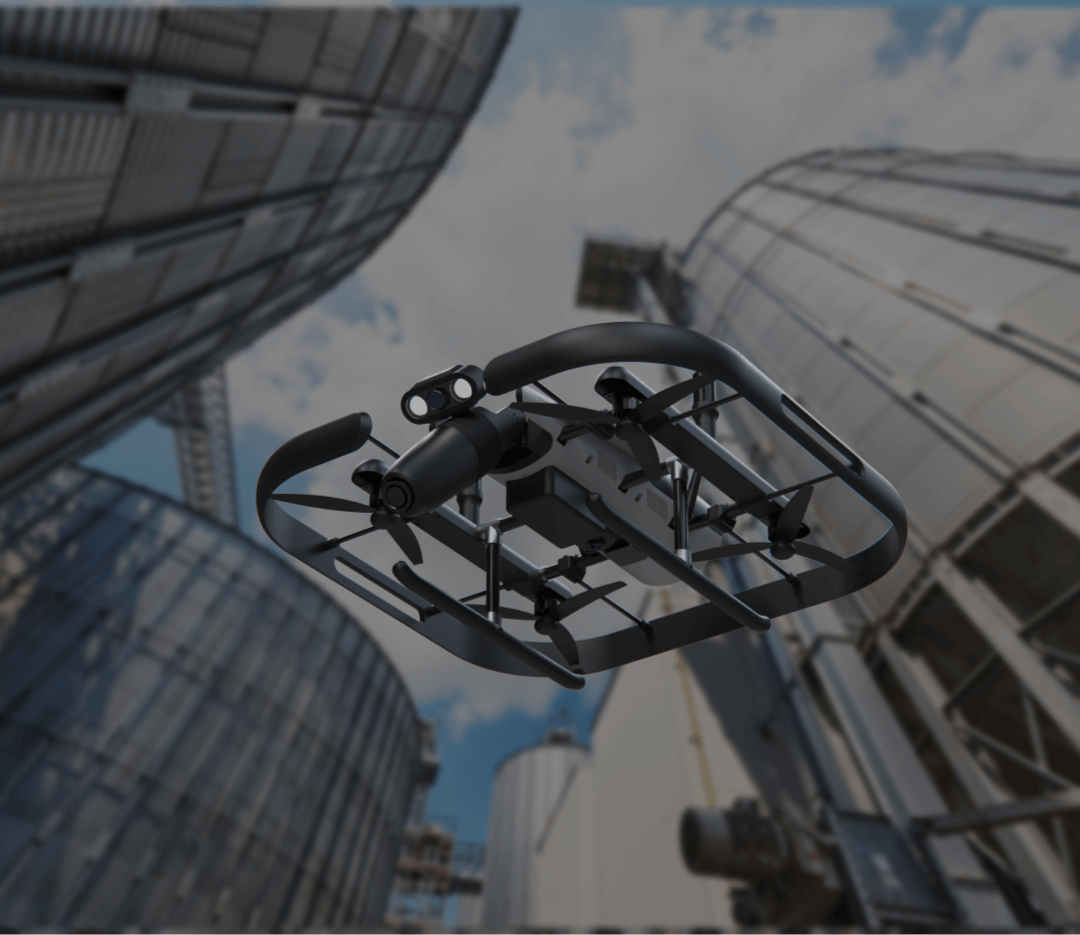

Possibility of 360 degress inspection

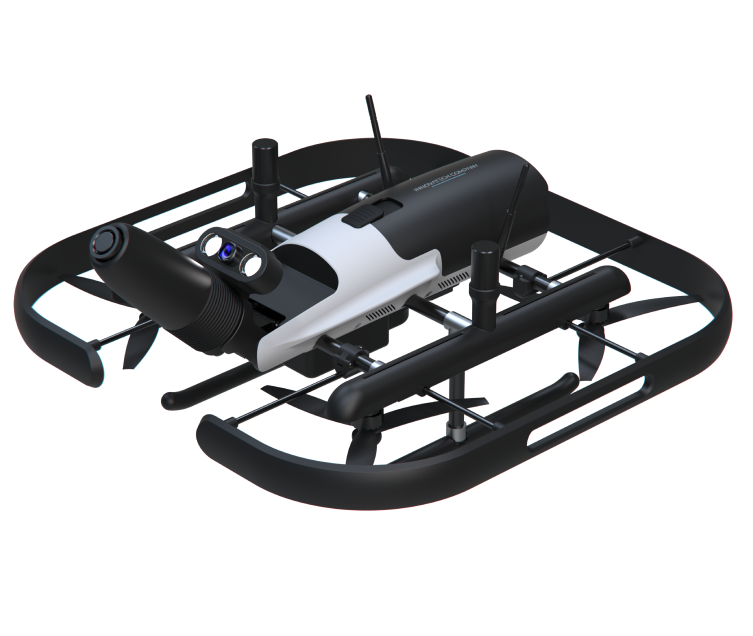

Location of EMAT sensor on rotary mast allows to measure
any inclined, horizontal and vertical surfaces. Combines with drone's YAW measurement could be taken at any point
Compact size

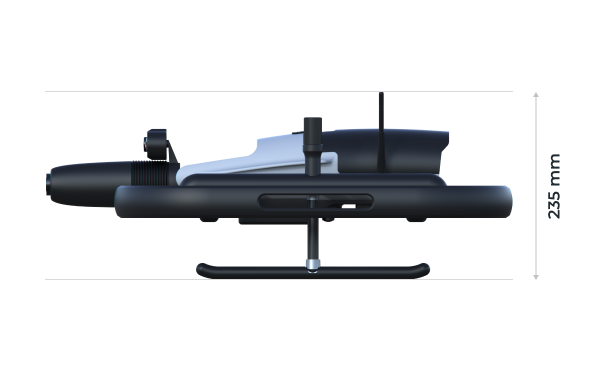

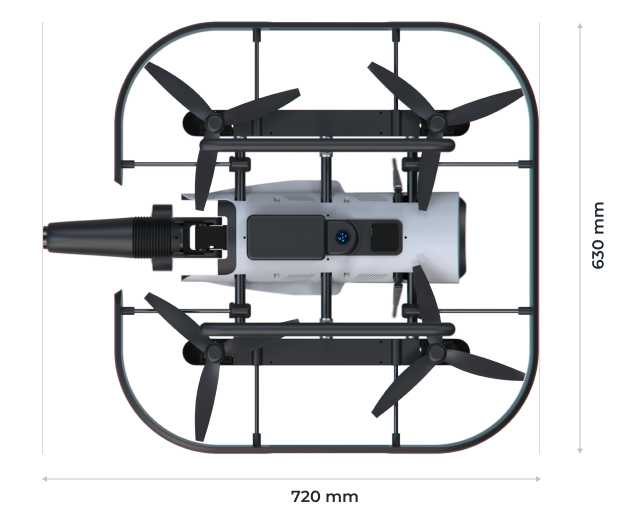

Compact size of the drone (720x620x235 mm) allows comfortably use it both outdoors and indoors
Navigation and safety
360 degrees sensors coverage protect drone from collisions. The optical stabilization system allows to fly indoor where GPS signal is not available. The drone does not use
a compass for navigation and has immune to magnetic interferences.
Simple and intuitive drone control
Drone's and measurement system controls integrated on one console that allows to fly copter and take measurement by 1 pilot. It is very simplified and any pilot can control Colibri360 after short traning
Simple and intuitive drone control
Drone's and measurement system controls integrated
on one console that allows to fly copter and take measurement
by 1 pilot. It is very simplified and any pilot can control Colibri360 after short traning

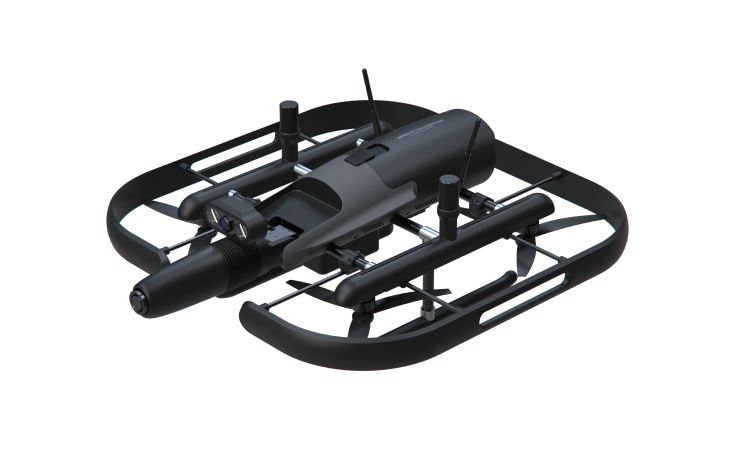

All in one
case solution
Drone transport in fully assembled condition. This minimize possibility of wrong assembling and ready for deployment
from the case
Drone technical parameters
Comments
Wind speed
up to 12 m/s
Total weight
4000 gr
Comments "Total system weight"
Total system weight
Flight time
18 min
Comments "At full battery charge"
At full battery charge
Communication range
2000m
Comments "Between Drone and Ground control"
Between Drone and Ground control
Ground control frequency range
2.400 - 2.483GHz
Data stream
10 Mb/sec
Camera resolution
1080P
Navigation & Stabilization
GPS & OpticFlow
Battery capacity
10000 mAh
Working temperature
-10 to 50 Deg C
Temperature range could be extended based
on customer's requirments
Comments "Temperature range could be extended based
on customer's requirments"
